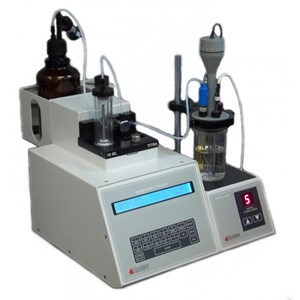

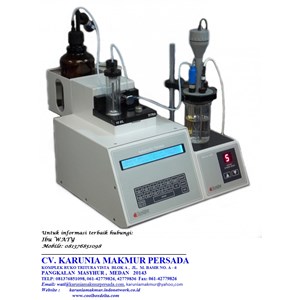

K90590 AUTOMATIC POTENTIOMETRIC TITRATOR merupakan Alat Ukur dan Instrumen yang berfungsi untuk penentuan Total Acid Number (TAN), Total Base Number (TBN), Mercaptan Sulphur dan Karl Fischer Water Content dari produk minyak bumi, pelumas dan minyak isolasi transformator. Titrasi adalah prosedur analisis kimia dasar dimana konsentrasi zat kimia dalam larutan ditentukan dengan mereaksikannya dengan jumlah kimia lain yang diukur. Titrator otomatis melakukan analisis ini dengan menggunakan dispenser yang digerakkan motor, mengaduk bejana reaksi dan elektroda yang merasakan selesainya reaksi dengan mengukur perbedaan potensial antara dua elektroda. Titrasi Otomatis meningkatkan akurasi, pengulangan dan reproduktifitas serta meminimalkan kesalahan dalam perhitungan dan dokumentasi.
Conforms to the Specifications of:
ASTM D664, D2896, D3227, D4739
Principle: Volume determination by equivalence point, end point or pH STAT.
Control: Microcontroller based
mV range: ± 3200 mV.
Accuracy: ± 0.1 mV (± 0.0016 pH).
Amplifier input impedance: > 10 ohms
Burette Resolution: 1/5000 for 5 ml, 1/10000 for 10 ml, 1/5000 for 25 ml.
Filling time: Less than 20 seconds
Keyboard: Alphanumeric splash waterproof polyester soft keys.
Display: 40 x 2 line back lighted liquid crystal display (LCD).
Titration Head: Manual stand with swiveling arm.
Stirrer System: Microcontroller based variable speed, high torque vortex stirrer with digital indication. (Magnetic Stirrer optional)
Sensors: Electrodes for Potentiometric titration - (pH, Ion, Redox, Argentometric).
a) Any combination electrode.
b) Differential Electrode System comprising sensing (Indicator) Electrode with BNC Connector and Reference Electrode with 4mm Banana Connector. Electrode for KF/Voltametric titration with BNC/TNC Connectors.
Temperature sensor (PRT/PT100) Calibration: 3-point Calibration with user entered buffer values and standardization with 7 pH buffer.
End Point detection:
a) Potentiometric
b) Voltametric
c) Thermometric and Photometric.
Cut-off criteria:
a) Volume
b) End point
c) mV/pH.
Methods:
Titrations:
a) Acid base
b) Nonaqueous
c) Redox
d) Preciptiation
e) Complexometric
f) back titration
KF titration (Optional)
Results:
a) Molarity
b) % Assay(wt),
c) % volume (ml)
d) ppm
e) mg/l
f)mg/g
g)g/l
h) meq/l
i) mol/kg
j) TAN and TBN for oil samples.
Method Storage: 50 methods with parameters.
Titrant Molarity storage: 20 values
Input/Output Peripheral Interface:
(a) Parallel Port: 1 - for printer
(b) Serial Port: 2 - for Balance & PC
