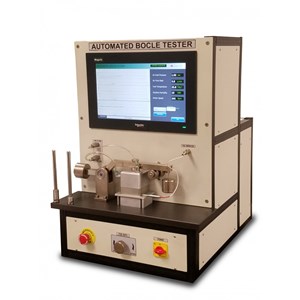

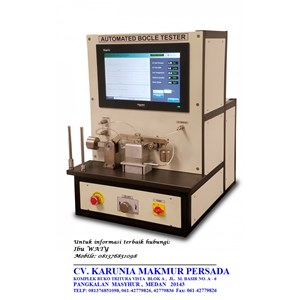

K94190 ATF Lubricity Test Rig (BOCLE)

Update Terakhir

18 / 12 / 2019

Min. Pembelian

1 Unit

Harga

CALL

Karunia Makmur Persada Merupakan Kontraktor Pengadaan Terlengkap Sekaligus Sebagai Importir Alat Instrument di Kota Medan. Kami Melayani Pengadaan di Lembaga Pemerintahan dan Swasta Diseluruh Indonesia.

Deskripsi Produk Deskripsi

Detail K94190 ATF Lubricity Test Rig (BOCLE)

Covers the Assessment of the wear aspects of the boundary lubrication properties of aviation turbine fuels on rubbing steel surfaces.

Simple to use interface –digitally computer control of all instrument functions
Standard ASTM D 5001 test sequence pre-loaded into ABT microprocessor controller – operator fits cleaned specimens, adds fuel sample & presses the ‘Start Test’ button.
Automatic control of test sequence-no operator-included variability in test results.
Automatic flow controllers for moist and dry air-no operator input required to control the humidity and flow rate of the conditioned air.
PC based data logging of Motor speed, test duration, fuel temperature, air temperature, humidity recorded during the test & a summary printed out confirming that all parameters were within the specified limits.
Interchangeable humidity & temperature probes-humidity and temperature measurement does not need to be re-calibrated-simply replace the combined relative humidity and temperature probe with an exchange pre-calibrated unit.
Heating & Cooling System through Peltier Heating & Cooling System
Digital Microscope with Image Acquisition System & software
PC based data acquisition & analyze system of motor speed, test duration, fuel temperature, air temperature, humidity.

Specifications
Fluid Volume - 50 ± 1.0 mL
Fluid Temperature - 25 ± 10C
Fluid Ambient Temperature - + 5.0 to +35.00C
Conditioned Air - 10 ± 0.2% relative humidity at 25±10C
Flow rate through Fluid 0.5l/min
Flow rate over the fluid 3.3l/min
Fluid Conditionining Time - 15 min
Fluid Test Conditions - 3.8 L/min flowing over the fluid
Applied Load - 1000 g (500g weight) (±1g)
Cylinder Rotational Speed - 240 ± 0.5 rpm
Test Duration - 30 ± 0.1 min
Data Acquisition & Analyze - Motor speed, Fuel temperature, air temperature , humidity & test duration.
Test Ring - Dia 49.25 to 49.10, Thk 13.11 to 13 (SAE 8720 Steel, Hardness 58 to 62 Rc, surface finish Rq 0.51 to 0.71 micron).
Test Ball - 12.7mm (0.5 inch) (AISI 52100 Steel, Hardness 64 to 66 Rc)
